Theme: Create
Your Library
Task
1: Create a circuit containing the
following subcircuits.
|
Circuit
name |

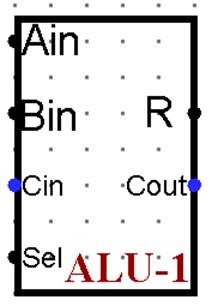

Subcircuit appearance |
Circuit

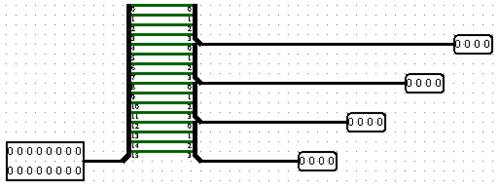

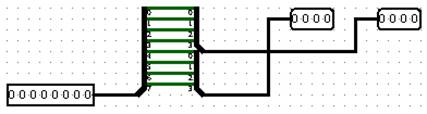

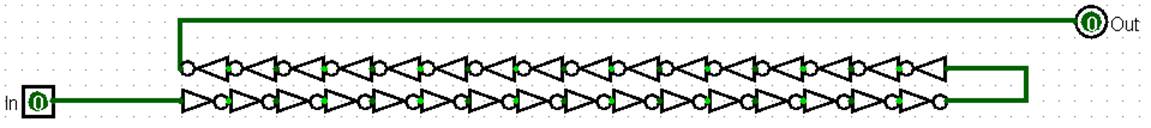

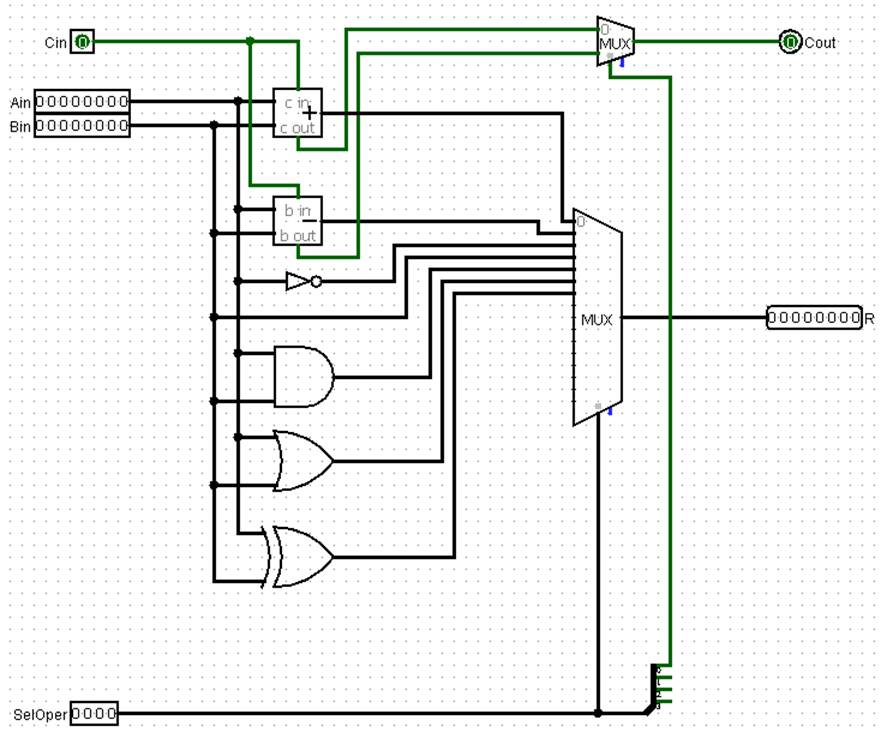

layout |
|
8-2HexBus |
|
|
|
16-4HexBus |
|
|
|
8-2HexBus_2 |
|
|
|
16-4HexBus_2 |
|
|
|
Delay_16 |
|
|
|
Delay_32 |
|
|
|
ALU-1 |
|
|
Save this circuit with a
name like 「陳小美Lib-01.circ」.
Task

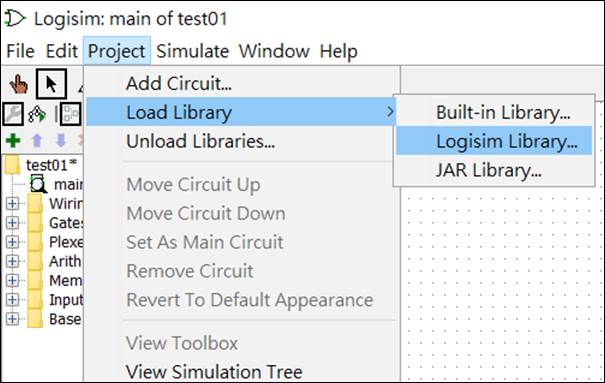

2: In your main circuit design, load the circuit as a library.
|
|
è |
|

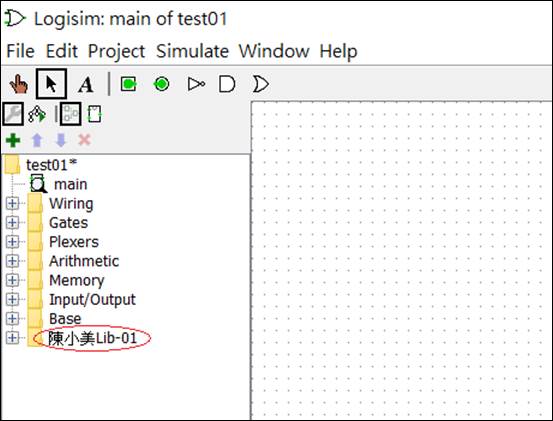

Then, you can use your library’s subcircuits in your main circuit design.
Task

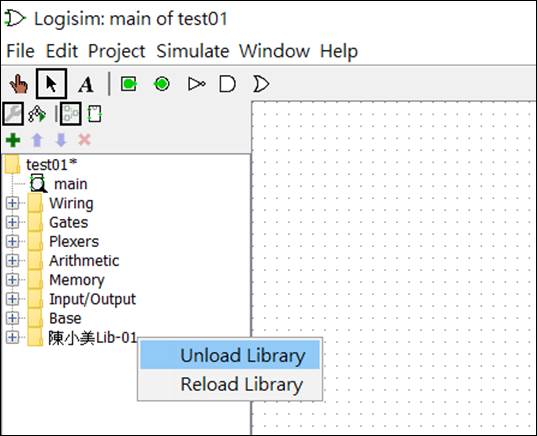

3: If you don’t need this library, you can unload it.
